25kVA Yangdong Series Silent Diesel Generator Denyo Type
  • Koten
  • Fujian China
  • 20-25days
  • 200pcs per month

Koten Yangdong Series Generator Prime Power
20kW/25kVA @50Hz 400V
22kW/28kVA @60Hz 220V

Koten Power Diesel Generator Set Powered By Yangdong Engine.

50Hz ,400V Three Phase Prime Power 20KW / 25KVA.

60Hz, 220V Three Phase Prime Power 22KW / 28KVA.

25kVA Silent Diesel Generator

Koten Power Yangdong series generators which equiped with Yangdong engine. Yangdong Co.,Ltd with "integrity, pragmatic, innovative" concept to provide high-tech, high-performance, high-quality products and first class service for the purpose, adhere to scientific and technological innovation, to become experts in power integrated solution. The company increased R & D efforts, relying on YTO Group National Technical Center's technical superiority and cooperate with the Southwest Research Institute, Austria AVL, FEV, Germany FEV and Japan YAMAHA, many of the world-renowned agencies, using electronically controlled fuel system EGR system, DPF system, and other international scientific and technological achievements, for a full range of technological transformation, have successfully completed to make diesel product research and development meet Euro Ⅲ, Ⅳ emission standard, and have complete independent intellectual property rights. Company is currently working on product development which can meet EuroⅤ emission standards., this brand engine are very popular in Southeast Asia, South American, Middle East and South Africa markets and so on.

Features & Benefits Of Yangdong Engine:

  • Easy service and maintance.

  • Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.

  • Compact design

  • 50 degree ambient temperature approved.

  • Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

Genset SpecificationGenset ModelKDY-25/SKDY-28/S
Frequency50Hz60Hz
Prime Power20kW25kVA22kW28kVA
Standby Power22kW28kVA24kW30kVA
Rated Voltage400/230V220/127V
Rated Current36A72A
Engine SpecificationEngine BrandYangdong
ModelY495D
AspirationNatural Aspiration
Fuel SystemDirect Inject
No.Cylinders4 in line
Displacement2.977L
Bore * Stroke95*105mm
Compression Ratio18.0:1
Raated Speed1500rpm1800rpm
Rated Power (With Fan)27kW30kW
Governor TypeMechanical/ElectricalMechanical/Electrical
Start Motor12V
Alternator SpecificationAlternator BrandKoten KA-184FSKoten KA-184E
Phase3
Voltage400/230V220/127V
Wiring Type3 Phase 4Wire,Y Type
BearingSingle
Power Factor0.8
Frequency50Hz60Hz
Prime Power20kW23kW
Exciter TypeBrushless, Self-Excitation
Voltage Regulation± 1%
Protection GradeIP23
Isulation GradeH/H
Altitude1000m

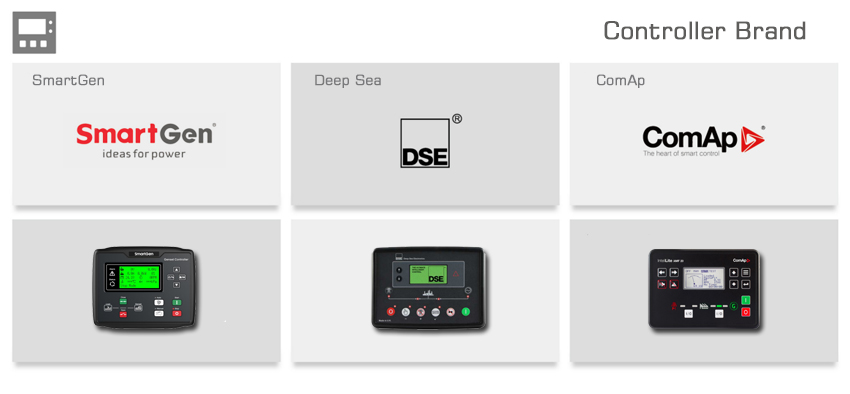

Control ModuleStandardSmartGen
ModelHGM6120N
Protective Functions★Low Oil PressureImage
★High Water Temperature

25kVA Generator Denyo Type

★High/Low Voltage
★High Engine Temperature And Overspeed
★Emergency Stop
★Start Failure
★Automatic mains failure
OptionalDeepseaComAp

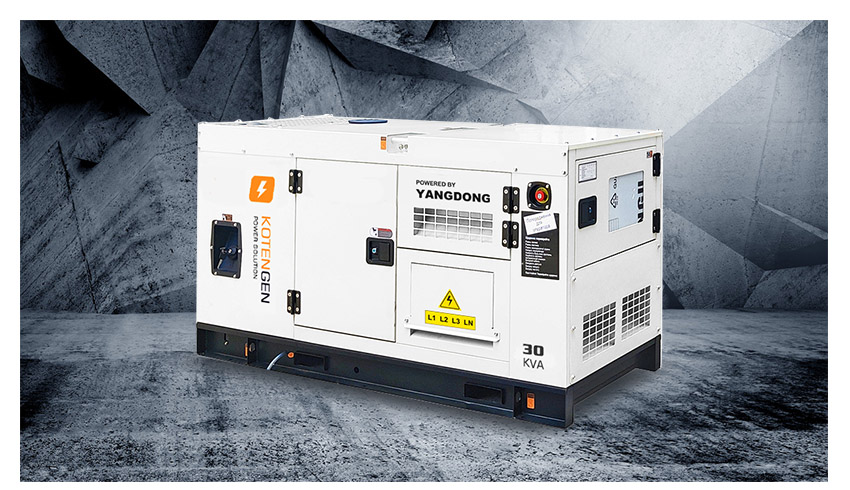

20kW Silent Generator

25kVA Silent Diesel Generator

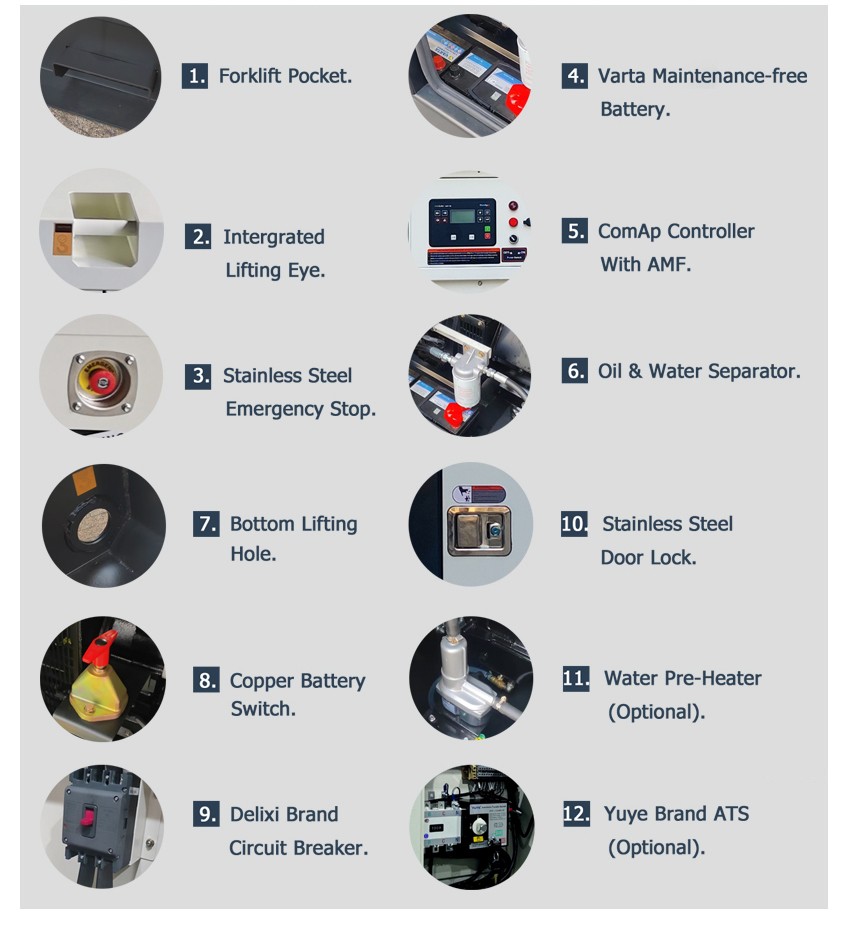

2.Genset Configuration:

Standard:

  • Genset coupled with Original Yangdong engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.

  • Large size radiator.

  • Heavy duty antivibration pad.

  • Heavy duty steel base frame with 8 hours continues working fuel tank.

  • The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.

  • High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.

  • large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.

  • High quality maintenance-free battery with connecting cables.

  • Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.

  • Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.

  • Genset standard with battery charger and ATS connection port.

  • Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.

Optional:

  • Water jacked heater.

  • Radiator water level sensor.

  • Oil heater.

  • Space heater.

  • ATS and synchronization panels.

  • Daliy fuel tank.

  • PMG for alternator.

25kVA Generator Denyo Type
