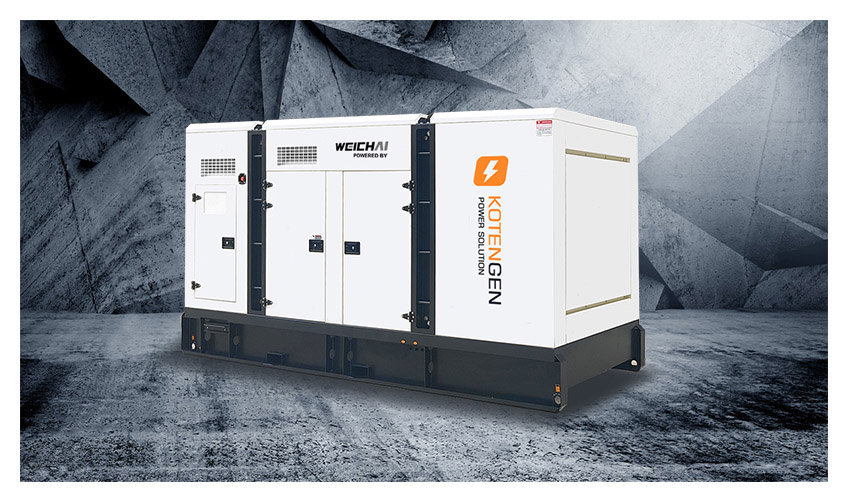

1250kVA Weichai Silent Diesel Generator Set
- Koten
- China
- 20-25days
- 200set per month
1- Weichai engine diesel generator set powered from 20kva to 2000kva.
2- Alternator optional: Koten/Leroysomer/Stamford.
3- Controller optional: Smartgen/Deepsea/ComAp.
4- 8hrs fuel tank as standard optional 12hrs or 24hrs big fuel tank capacity.
5- 1 Year global warranty.
Koten Power Diesel Generator Set Powered By Weichai Engine.
50Hz ,400V Three Phase Prime Power 1000KW / 1250KVA.
Features & Benefits Of Weichai Engine:
Easy service and maintance.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
24/7 global after-sales service and spare parts supply.
Full range.
50 degree ambient temperature approved.
Low operation cost.
Aplication:
Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.
1,Technical data.
| Diesel Genset | ||
| Model | KW1250D5 | |
| Frequency | 50Hz | |
| Phase | 3Ph | |
| Voltage | 230/400V | |
| Prime Power | 1000 kW/1250 kVA | |
| Standby Power | 1100 kW/1375 kVA | |
| Fuel Tank Capacity | 6hrs | |
| Engine Datesheet | ||
| Engine Brand | WEICHAI | |
| Engine Model | 12M33D1210E200 | |
| Engine speed | 1500rpm | |
| Rated power | 1100kW | |
| No.of Cylinder | 12V | |
| Bore | 150mm | |
| Strock | 185mm | |
| Displacement | 39.2L | |
| Fuel Comsuption (L/Hr) | ||
| 100% Prime power | 260 | |
| 75% Prime power | 190.8 | |
| 50% Prime power | 129.6 | |
| Alternator Optional | ||
| Alternator Brand | Koten/Leroysomer/Stamford | |
| Controller Optional | ||
| Controller Brand | Smartgen/ComAp/Deepsea | |
| Genset Dim and Weight | ||
| Dim | 6058*2438*2591mm | |
| Weight | 8736kgs | |
2. Genset Controller:
3. Genset Configuration:
Standard:
Genset coupled with Original Cummins engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
Optional:
Water jacked heater.
Radiator water level sensor.
Oil heater.
Space heater.
ATS and synchronization panels.
Daliy fuel tank.
PMG for alternator.
