Fawde Series 80kW 100kVA Generator Set
  • Koten
  • Fujian China
  • 20-25days
  • 200pcs per month

Fawde Series Generator Prime Power
80kW /100kVA @50Hz 400/230V
85kW /106kVA @60Hz 220/127V

Koten Power Diesel Generator Set Powered By Fawde Engine.

50Hz ,400V Three Phase Prime Power 80KW / 100KVA.

60Hz, 220V Three Phase Prime Power 85KW / 106kVA.

100kVA Generator Set

Koten Power FAWDE series generators which equiped with FAWDE engine. In October 2017, FAW, with Wuxi Diesel Engine Works of FAW Jiefang Automotive Company (FAWDE) as the main body, integrated DEUTZ (Dalian) Diesel Engine Co., LTD, Wuxi Fuel Injection Equipment Research Institute FAW, FAW R&D Center Engine Development Institute to establish FAWDE, which is an important business unit of FAW commercial vehicle business and a R & D and production base for heavy, medium and light engines of Jiefang company. The division is located in Wuxi, Changchun, Dalian and headquartered in Wuxi, covering a total area of 870,000 ㎡, with employees of over 5400, and the main products of diesel engines, gas engines, moving parts and remanufactured product and common rail systems. After establishment, it has formed the R&D layout of "two cities and three places" in Wuxi, Changchun, established "five mechanisms for technological innovation" and the big R&D system integrating procurement, market, quality, cost, process. Then the division has complete independent development capability of engine and has won "First Prize for National Science and Technology Progress", "Second Prize for National Science and Technology Progress" and become the first pilot demonstration project of intelligent manufacturing of MIIT, this brand engine are very popular in Southeast Asia, South American, Middle East and South Africa markets and so on.

Features & Benefits Of Fawde Engine:

  • Easy service and maintance.

  • Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.

  • Compact design

  • 50 degree ambient temperature approved.

  • Low operation cost.

Aplication:

Koten gensets had been widly applicated for hospital, factories, shopping mall, hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

Genset SpecificationGenset ModelKDF-100/SKDF-106/S
Frequency50Hz60Hz
Prime Power80kW100kVA85kW106kVA
Standby Power88kW110kVA94kW117kVA
Rated Voltage400/230V220/127V
Rated Current144A278A
Engine SpecificationEngine BrandFawde
ModelCA6DF2D-14DCA4DF2-14D
AspirationTurbochargedTurbocharged& intercooling
Fuel SystemDirect Inject
No.Cylinders6 in Line4 in line
Displacement6.55L4.75L
Bore * Stroke110*115mm110*125mm
Compression Ratio17.0:117.5:1
Raated Speed1500rpm1800rpm
Rated Power (With Fan)96kW101kW
Governor TypeElectricalElectrical
Start Motor24V
Alternator SpecificationAlternator BrandKoten KA-274CKoten KA-274C
Stamford UCI274CStamford UCI274C
Phase3
Voltage400/230V220/127V
Wiring Type3 Phase 4Wire,Y Type
BearingSingle
Power Factor0.8
Frequency50Hz60Hz
Prime Power80kW94kW
Exciter TypeBrushless, Self-Excitation
Voltage Regulation± 1%
Protection GradeIP23
Isulation GradeH/H
Altitude1000m
Control ModuleStandardSmartGen
ModelHGM6120N
Protective FunctionsLow Oil PressureImage
High Water Temperature

80kW Generator Set

High/Low Voltage
High Engine Temperature And Overspeed
Emergency Stop
Start Failure
Automatic mains failure
OptionalDeepseaComAp

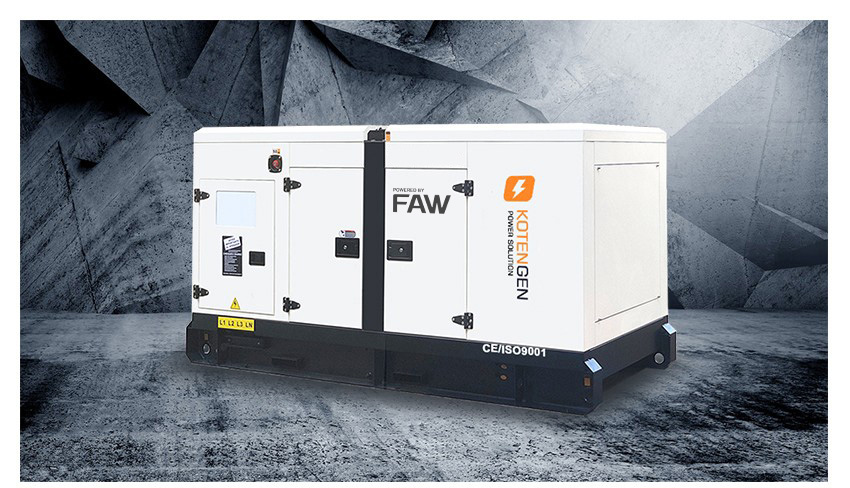

Fawde 100kVA Generator

100kVA Generator Set

2.Genset Configuration:

Standard:

  • Genset coupled with Original Fawde engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.

  • Large size radiator.

  • Heavy duty antivibration pad.

  • Heavy duty steel base frame with 8 hours continues working fuel tank.

  • The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.

  • High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.

  • large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.

  • High quality maintenance-free battery with connecting cables.

  • Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.

  • Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.

  • Genset standard with battery charger and ATS connection port.

  • Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.

Optional:

  • Water jacked heater.

  • Radiator water level sensor.

  • Oil heater.

  • Space heater.

  • ATS and synchronization panels.

  • Daliy fuel tank.

  • PMG for alternator.

80kW Generator Set
