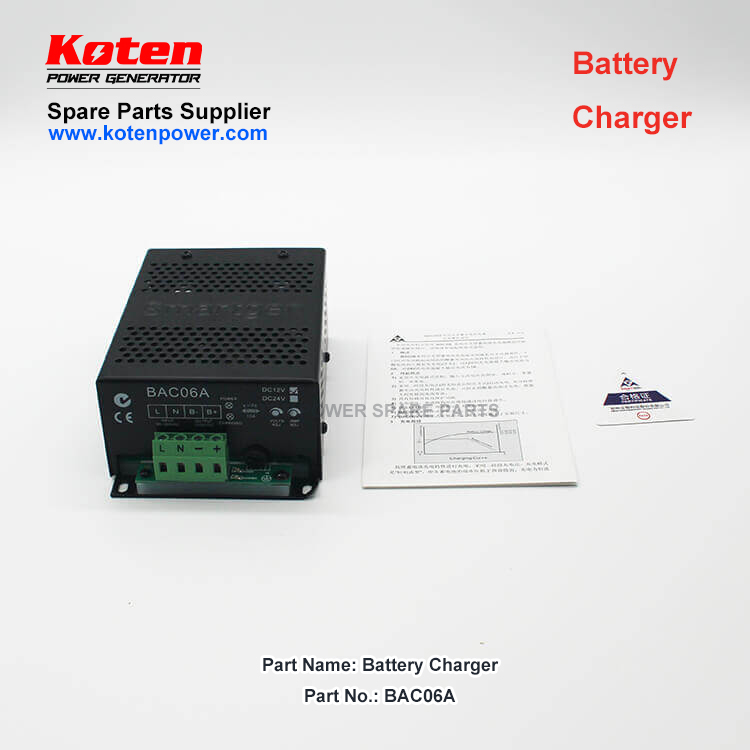

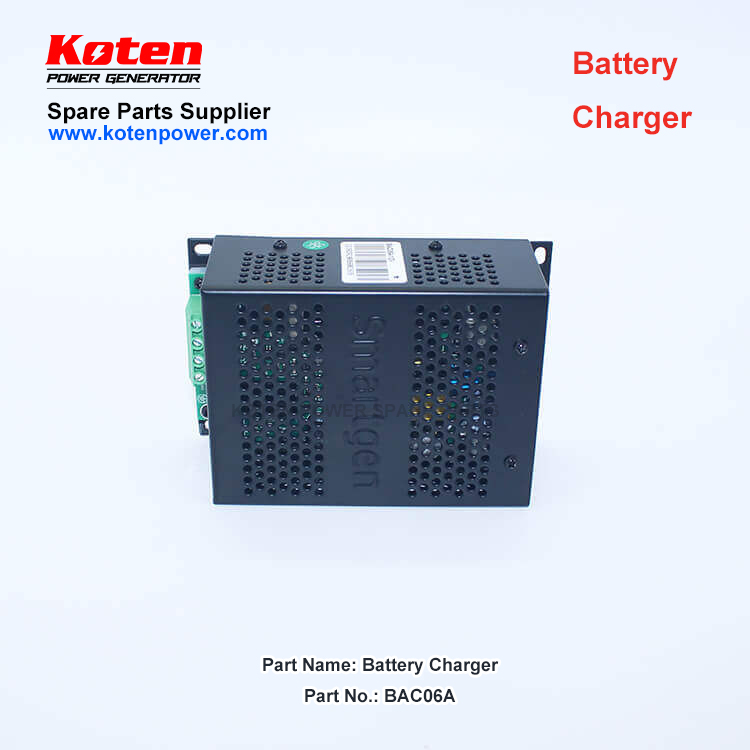

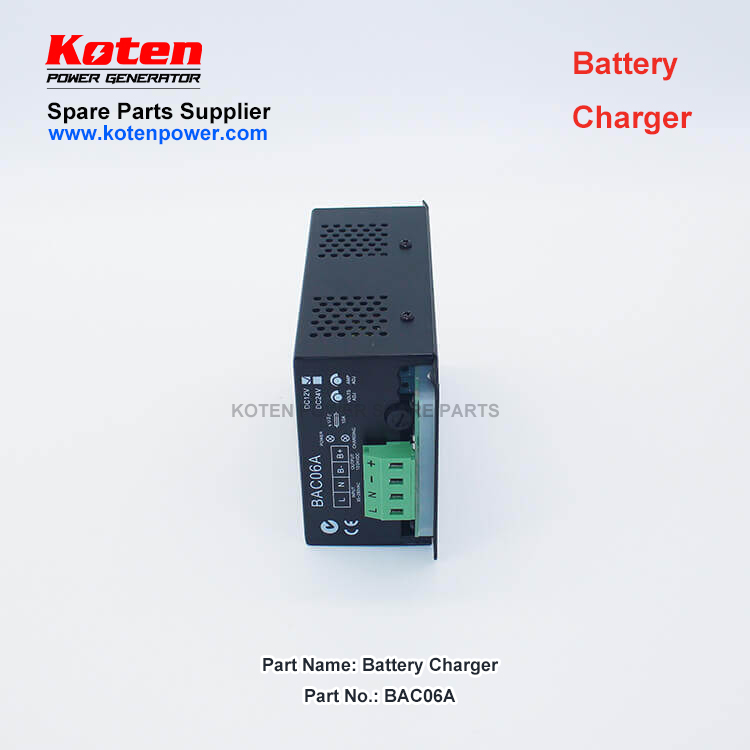

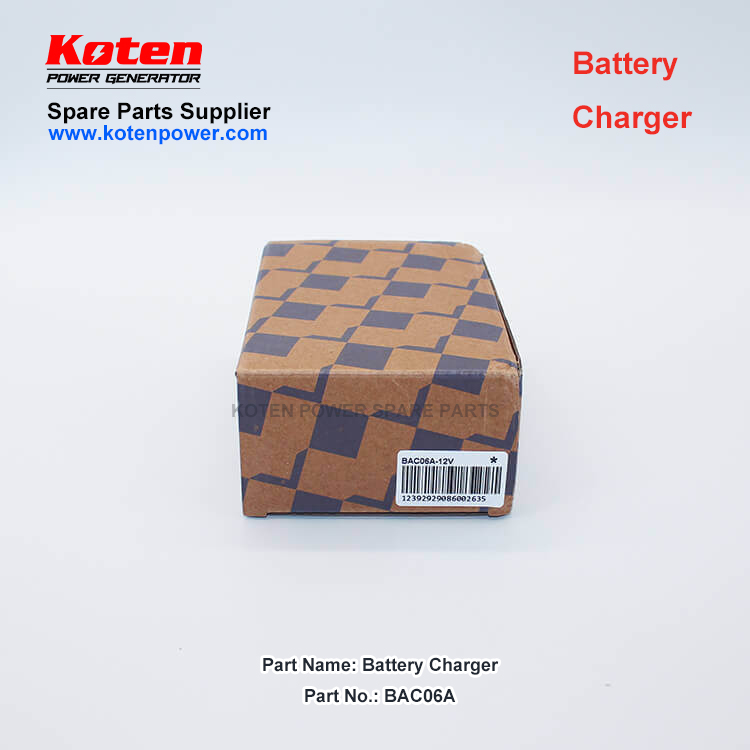

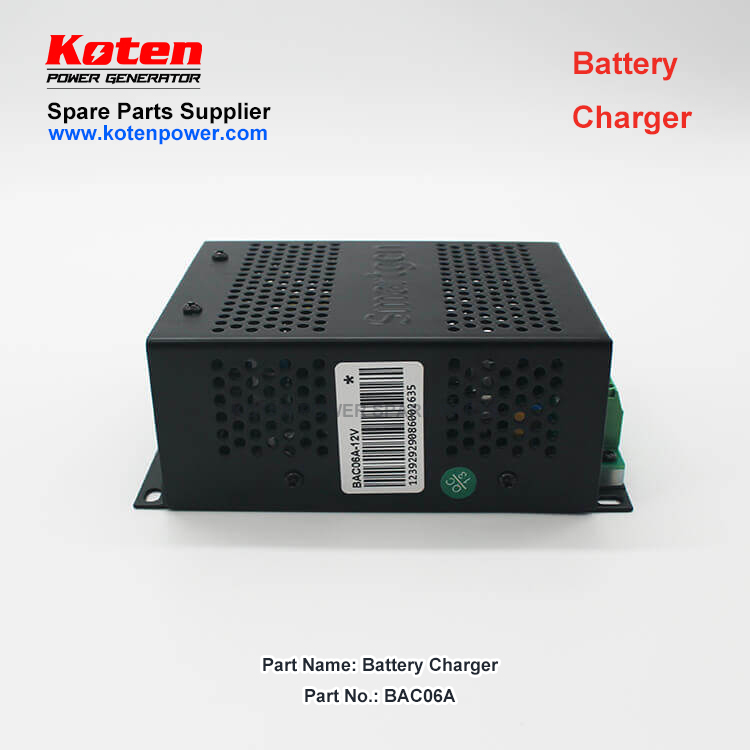

BAC06A Series Battery Charger For Diesel Generator Set

PERFORMANCE AND CHARACTERISTICS

Characteristics are as below:

— Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;

— Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extend the battery life to the fullest;

— With short circuit and reverse connection protection;

— Charging voltage and current can be adjusted via potentiometer on site;

 — LED display: Power indication and charging indication;

— Horizontal type for installation of BAV06A, easy to install;

CHARGING PRINCIPLE

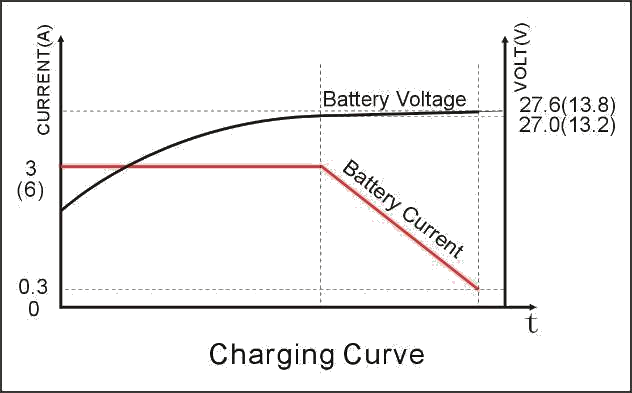

According to charging property of the lead-acid battery, battery charger uses 2-stage charging method and charge mode is “constant-current”. When battery voltage is under the threshold, it is charging in constant-current mode; when the battery voltage is higher than the threshold，the charging current is decreasing as the battery voltage is rising until it reaches the set voltage, and then charge mode is turned into “floating charge”. Charge current is gradually reducing and battery voltage is rising up to the set value. When charging current is lower than 0.3A, the battery is basically fully charged (charging indicator eliminates). Afterwards, charging current will offset self-discharge of the battery and long time charging does no harm to the battery. Thus the charger can not only maintain a full charged condition and but also ensure the battery life.

SPECIFICATION
