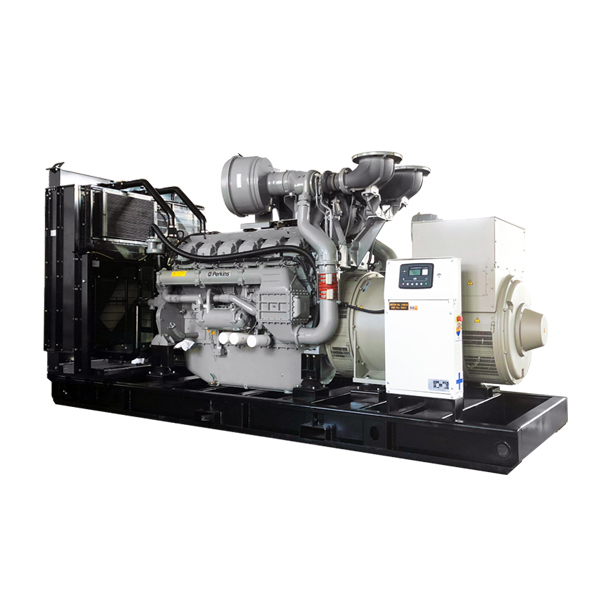

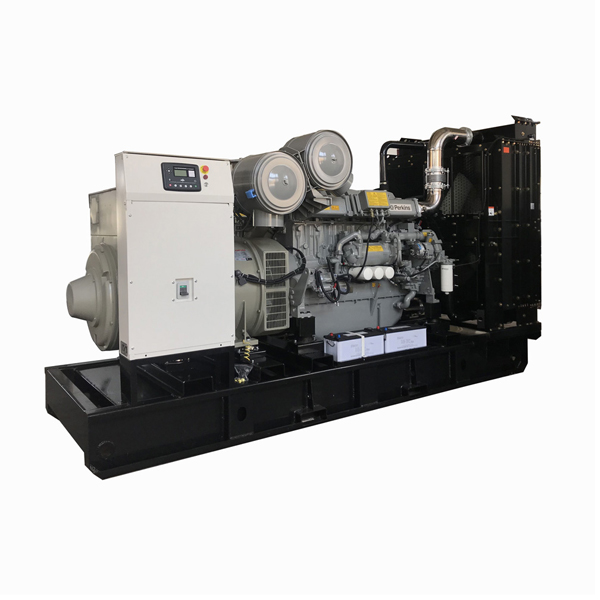

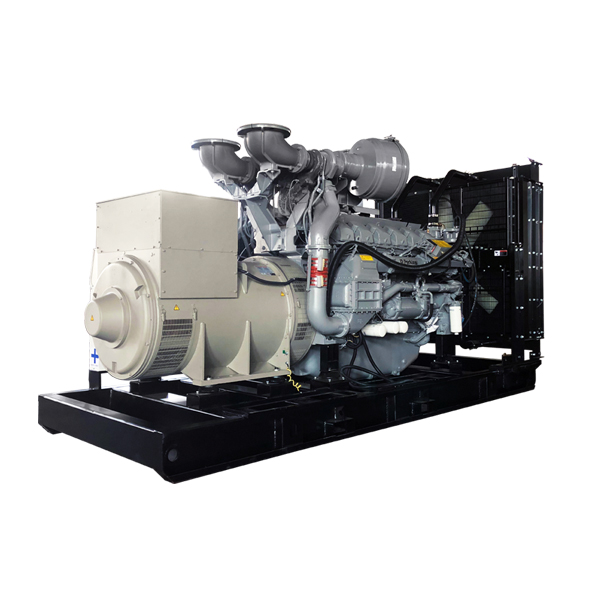

50Hz Perkins Series 1600kW 2000kVA Generator Set

Brand Koten
Product origin Fujian CHina
Delivery time 35-45days
Supply capacity 200pcs per month

Koten Perkins Series Generator With Prime Power
1600kW/2000kVA @50Hz 400V

Email

Download

Koten Power Diesel Generator Set Powered By Perkins Engine

50Hz ,400V Three Phase Prime Power 1600KW / 2000KVA.

2000kVA Perkins Generator Koten Power Perkins series generator equiped with Perkins engine

Perkins Engine Co., Ltd. was founded in 1932 . Perkins is one of the world's leading engine manufacturers and a leader in the off highway diesel and natural gas engine market with power of 4 to 2000 kW (5 to 2800hp). Perkins is good at customizing engines for customers to fully meet their specific needs, so it is trusted by equipment manufacturers. With this advantage, the company now supplies engines to more than 1000 major equipment manufacturers around the world. These engines are used in more than 5000 different occasions, covering five major markets: agricultural machinery, construction / engineering machinery, generator sets, industrial equipment and material handling equipment. Perkins' diesel engine product lineup includes: 400 series, 800 series, 1100 series and 1200 series for industrial use; And 400 series, 1100 series, 1200 series, 1500 series, 2000 series and 4000 series for generator sets.

Features & Benefits Of Perkins Engine:

Easy service and maintance.
With full range power.
Adapt to harsh environment high altitude, extreme hot and cold environment and maintance.
Compact design
50 degree ambient temperature approved.
Low operation cost.

Aplication:

Widly applicated for hotel, banks, telecommunictaion, residential, airport, stations, military ect.

1,Technical data.

Genset Specification	Genset Model	KDP-2000/S
	Frequency	50Hz
	Prime Power	1600kW	2000kVA
	Standby Power	1760kW	2200kVA
	Rated Voltage	400/230V
	Rated Current	2880A
Engine Specification	Engine Brand	Perkins
	Model	4016TAG2A
	Aspiration	Turbocharged
	Fuel System	Direct Inject
	No.Cylinders	16-Vee 60°
	Displacement	61.123 L
	Bore * Stroke	160*190mm
	Compression Ratio	13.6:1
	Raated Speed	1500rpm
	Rated Power (With Fan)	1774kW
	Governor Type	Electrical
	Start Motor	24V
Alternator Specification	Alternator Brand	Koten KA-734F
		Stamford PI734F
	Phase	3
	Voltage	400/230V
	Wiring Type	3 Phase 4Wire,Y Type
	Bearing	Single
	Power Factor	0.8
	Frequency	50Hz
	Prime Power	1664kW
	Exciter Type	Brushless, Self-Excitation
	Voltage Regulation	± 1%
	Protection Grade	IP23
	Isulation Grade	H/H
	Altitude	1000m
Control Module	Standard	SmartGen
	Model	HGM6120N
	Protective Functions	★Low Oil Pressure	Image
		★High Water Temperature
		★High/Low Voltage
		★High Engine Temperature And Overspeed
		★Emergency Stop
		★Start Failure
		★Automatic mains failure
	Optional	Deepsea	ComAp

2. Genset Configuration:

Standard:

Genset coupled with Original Perkins engine with heavy-duty air filter, oil filter, fuel filter, fuel and water separator. Standard Koten brand brushless ac alternators. Alternator optional for Stamford, Leroy Somer, Marathon, Meccalte.
Large size radiator.
Heavy duty antivibration pad.
Heavy duty steel base frame with 8 hours continues working fuel tank.
The thickness of the canopy is 2mm at least with high quality paint materials and strict powder paint processing.
High quality door locks and hinges and 180° revolvable with disassemble door for easy maintenance.
large-scale impedance combined type muffler with high quality soundproof and insulation materials to ensure the low noise level for the generators.
High quality maintenance-free battery with connecting cables.
Standard mcb or mccb with brand Delixi. Optional for Chint,ABB ect.
Standard Smartgen HGM6120N control moduel with AMF function, Optional for Deepsea, ComAp, Datakom,Deif ect.
Genset standard with battery charger and ATS connection port.
Genset standard with 4 lift eyes, lift pockets on the base frame and lifting port on the top of the canopy which ensure the gensets can be transport easily.
